    1500*3000mm Rectangular Linear Vibrating Screen For Sugar Stainless Steel

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : AG
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 sets per month
    Delivery Time : 15~35 work days after order confirmed
    • Product Details
    • Company Profile

    1500*3000mm Rectangular Linear Vibrating Screen For Sugar Stainless Steel

    1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar


    Overview of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar​:

    1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar is also known as the mogensen sizer, mogensen screen, mogensen sieve, mogensen screener, mogensen screening machine, probability sieve, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve etc. It is a kind of screening machine that actively uses the principle of probability screening.

    The high efficiency vibration probability screen is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.

    This kind of high efficiency vibrating sieve has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.

    This series of vibration sieving machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.


    Working Principle of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

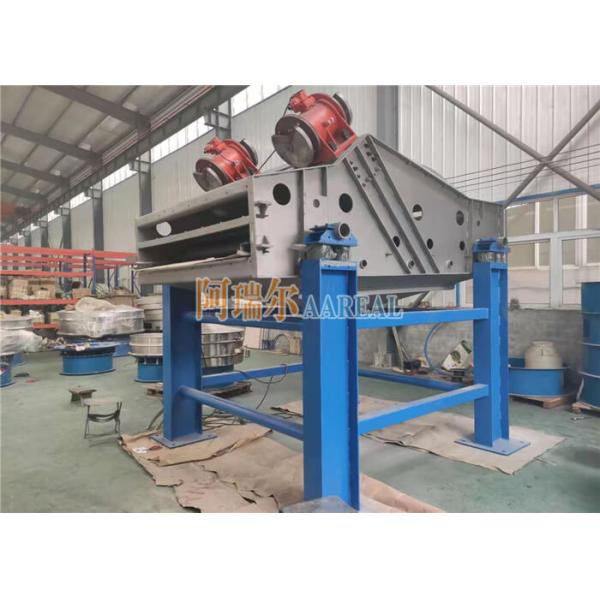

    The screen surface does linear vibration relying on the vibration excitation device. The high efficiency vibration probability sizer adopts the screen mesh which is bigger than the sieving granularity. Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface. It consists of a frame, double vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.

    The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.

    The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.


    Main Dimensions of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

    ModelLL1L2BB1H
    AG-08181800110026082011601800
    2AG-08181800110026082011601900
    AG-102020001250300102013801850
    2AG-102020001250300102013801980
    AG-102424001550300102013802050
    2AG-102424001550300102013802150
    3AG-102424001550300102013802400
    AG-103030002000300102013802200
    2AG-103030002000300102013802350
    AG-122424001550380123016202050
    2AG-122424001550380123016202200
    3AG-122424001550380123016202450
    AG-123030002000380123016202200
    2AG-123030002000380123016202350
    3AG-123030002000380123016202600
    AG-123636002350380123016202350
    2AG-123636002350380123016202500
    AG-153030002000450153019302200
    2AG-153030002000450153019302350
    3AG-153030002000450153019302600
    AG-153636002350450153019302350
    2AG-153636002350450153019302600
    AG-183636002350500183023002400
    2AG-183636002350500183023002550
    3AG-183636002350500183023002810
    AG-184242002800500183023002560
    2AG-184242002800500183023002720

    Features of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

    1. The production capacity of unit area is large, and the screen mesh is not easy to jam.

    2. Uniform material distribution and high screening efficiency.

    3. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.

    4. Several kinds of products with different particle sizes can be produced at the same time.

    5. Completely enclosed, free of dust, smooth operation, easy to use and maintain.

    6. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.

    7. The equipment is made of high quality stainless steel, corrosion resistant and long service life.


    Main Technical Parameters of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

    ModelLayer

    Screen Area

    (m2)

    Screen Aperture

    (mm)

    Feed Size (mm)

    Capacity

    (t/h)

    Double Amplitude (mm)

    Shake Frequency

    (r/min)

    Power (KW)Max. Vibration Force (KN)
    AG-081811.440.25-6≤401.5-206-89800.75×210×2
    2AG-081821.440.25-12≤402-406-89800.75×210×2
    AG-1020120.25-6≤502-306-89801.1×216×2
    2AG-1020220.25-12≤502.5-606-89801.1×216×2
    AG-102412.40.25-6≤502.5-456-89801.1×216×2
    2AG-102422.40.25-12≤503-806-89801.5×220×2
    3AG-102432.40.25-12≤504-1006-89801.5×220×2
    AG-1030130.25-6≤503-606-89801.5×220×2
    2AG-1030230.25-12≤504-1006-89801.5×220×2
    AG-122412.880.25-6≤803-606-89801.5×220×2
    2AG-122422.880.25-12≤804-1006-89802.2×230×2
    3AG-122432.880.25-12≤805-1206-89802.2×230×2
    AG-123614.320.35-6≤806-1006-89802.2×230×2
    2AG-122424.320.35-12≤808-1506-89802.2×230×2
    AG-123013.60.25-6≤804-806-89801.5×220×2
    2AG-123023.60.25-12≤805-1206-89802.2×230×2
    3AG-123033.60.25-12≤806-1506-89802.2×230×2
    AG-153014.50.35-6≤1006-1006-89802.2×230×2
    2AG-153024.50.35-12≤1008-1506-89803.0×240×2
    3AG-153034.50.35-12≤10010-1806-89803.0×240×2
    AG-153615.40.35-6≤1008-1206-89803.0×240×2
    2AG-153625.40.35-12≤10010-2006-89803.0×240×2
    AG-183616.480.35-6≤12012-1506-89803.7×250×2
    2AG-183626.480.35-12≤12016-2506-89803.7×250×2
    3AG-183636.480.35-12≤12020-3006-89803.7×250×2
    AG-184217.560.35-6≤12015-2006-89803.7×250×2
    2AG-184227.560.35-12≤12020-3006-89803.7×2

    50×2


    Selection Tips of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

    1. There are several installatio forms for the high efficiency linear vibration screen, such as seated type, suspension type and the combination of the two kinds. Please consider it carefully when selecting.

    2. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.
