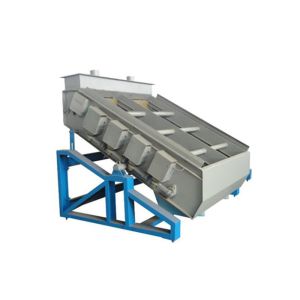

    Safe Dewatering Vibrating Screen Electromagnetic Exciter For Mine Industry

    Ask Lasest Price
    Brand Name : AAREAL
    Model Number : ZWS
    Certification : ISO9001:2015
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5 sets per month
    Delivery Time : 30~35 work days after order confirmed
    • Product Details
    • Company Profile

    Safe Dewatering Vibrating Screen Electromagnetic Exciter For Mine Industry

    Safe Dewatering Vibrating Screen Electromagnetic Exciter For Mine Industry

    Introduction of High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry:

    High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry has high amplitude frequency and good screening effect, which is different from the principle of ordinary screening equipment. Because of adopting high frequency, on the one hand, it destroys the surface tension and magnetic mass shape of pulp, accelerates the separation effect of useful minerals with large density (specific gravity), increases the frequency of contact between materials with less than separation particle size and sieve holes, thus creates better separation conditions, making them smaller than separation particles The material with high content, especially the material with high content and pulp, passes through the screen to become the product under the screen, which can separate the coarse and fine materials better and improve the grade of iron concentrate powder.


    Working Principle of High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry:

    The High Frequency Vibrating Wire Mesh Screen Machine vibrates by electromagnetic vibrator, which separates the coarse and fine particles of the material through the screen, and then divides the coarse and fine materials through the lower hopper.


    Technical Parameters of High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry:

    ModelScreen Area (㎡)Working Frequency (Hz)

    Screen Slope

    ( °)

    Power

    (Kw)

    Weight (Kg)Reference Size (including maintenance platform)
    L*W*H (mm)
    2ZWS1518-D-II2×2.75020;25;30;351.843003603*3824*2856
    3ZWS1518-D-II3×2.75020;25;30;352.755004348*3824*3390
    2ZWS2018-S-II2×3.65020;25;30;353.653003649*4456*2830
    3ZWS2018-S-II3×3.65020;25;30;355.480004348*4456*3300
    4ZWS2018-S-II4×3.65020;25;30;357.2109004829*4450*3900
    2ZWS2020-S-II2×4.05020;25;30;353.655003750*4456*2814
    3ZWS2020-S-II3×4.05020;25;30;355.484004575*4456*3305
    4ZWS2020-S-II4×4.05020;25;30;357.2115005220*4456*3996
    2ZWS2418-S-II2×4.325020;25;30;353.657003649*4766*2856
    3ZWS2418-S-II3×4.325020;25;30;355.486004348*4766*3297
    4ZWS2418-S-II4×4.325020;25;30;357.2117004829*4766*3832
    2ZWS2420-S-II2×4.85020;25;30;353.659003750*4766*2835
    3ZWS2420-S-II3×4.85020;25;30;355.490004575*4766*3300
    4ZWS2420-S-II4×4.85020;25;30;357.2123005220*4766*3900

    Characteristic​s of High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry:

    1. high vibration, low amplitude, high sieve penetration rate

    2. the screen surface is laminated stainless steel screen and polymer wear-resistant screen plate

    3. low power consumption, high efficiency of classification and screen surface

    4. rubber spring support screen frame, vibration isolation and absorption, low noise
    5. multi-channel to feed the mine, screen surface high utilization rate, large processing capacity


    Application of High Frequency Electromagnetic Vibrating Wire Mesh Screen for Mine Industry:

    The High Frequency Vibrating Wire Screen Machine can be widely used in mineral processing, coal preparation, chemical, brick, food, pharmaceutical, alkali, fertilizer, paper and other industries in a variety of dry materials, wet screening, grading, dehydration. For the fine grading process in the ore dressing grading process, the difference between the appropriate feed concentration, the feed particle size (-200 mesh grade), and the difference between the particle size and the feed size of the demand sieve is less than 30 percentage points Conditions, the screening efficiency as high as 70% or more.
